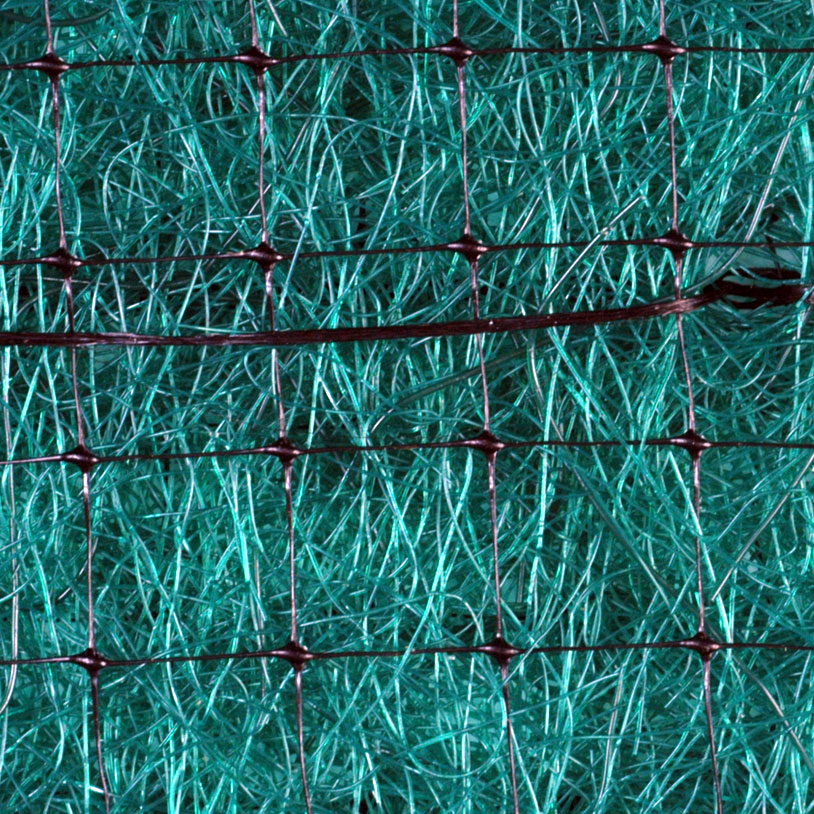

Western Excelsior's Excel PP5-12 Turf Reinforcement Mat (TRM) consists of a matrix of ultraviolet stabilized, synthetic fibers stitched between two ultraviolet stabilized, heavy-duty synthetic nets. With a target weight of twelve ounces per square yard, the Excel PP5-12 provides sufficient thickness and durability to yield functional longevity greater than three years. The Excel PP5-12 is intended to provide immediate erosion control and long term turf reinforcement for the more severe slope and channelized applications. The Excel PP5-12 TRM provides erosion control and turf reinforcement for a minimum of thirty-six months, and likely much longer. Available in a variety of roll sizes, Excel PP5-12 provides reliable, economical erosion control and turf reinforcement for projects that benefit from a permanent material. Excel PP5-12 utilizes a blend of properties specifically designed to provide a high level of unvegetated performance, in addition to excellent vegetated performance. Like all Western Excelsior products, Excel PP5-12 is made in the USA and may yield LEED credits for the end user. In addition to a complete suite of standard documentation, detailed information on the advantages and properties of the product are provided below.
| Property | Excel PP5-10 |
|---|---|
| Matrix Color | Green |
| Netting | Top and Bottom |
| Netting Type | Synthetic |
| Netting Degradability | Non-Degradable |
| Stitching | Synthetic |
| Stitch Spacing | 2 in On Center |
| Matrix | 100% Synthetic Fiber |
| Degradability | Non-Degradable |
| Degradability Mechanism | Non-Degradable |
| Unit Weight | 12.0 oz/yd^2 (407 g/m^2) |
| Thickness | 0.38 in (10 mm) |
| Tensile Strength (MD) | 25.0 lb/in (4.4 kN/m) |
| Tensile Strength (TD) | 18.0 lb/in (3.2 kN/m) |
| Coverage | 20% open |
| Available Widths | 7.5 - 16.0 ft (2.3 - 4.9 m) |
| Available Lengths | 112.5 - 450 ft (34.3 - 137.2 m) |
| Nominal Longevity | > 36 Months |
| Enhancement | None |
